water flowmeter Rotary Flowmeter

Product Description

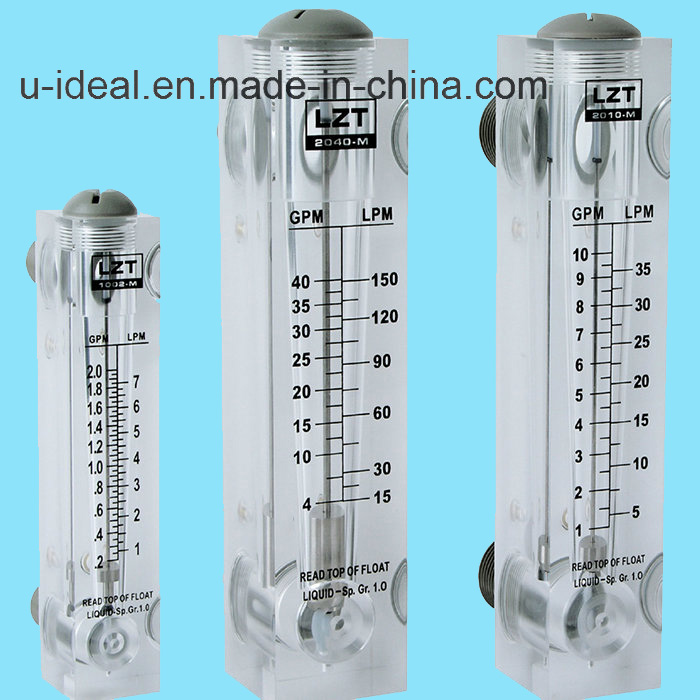

The LZM-ZT / T series panel flow meter
Technical parameters

1.Product Features

Medium temperature: -20~+120º C
Ambient temperature: -20~+55º C
High quality turbine resulting in wider measurement range than conventional ones
Various types of transducers for different applications
The unique Multi-point intelligent non-linear correction to the instrument coefficient
Accuracy assurance due to the standard flow calibration facilities
100% pressure experiment, 100% products quality inspection
Power-Off Protection: The instrument coefficient and the accumulative flow value can be saved for ten years without power
Wide usage: can be used for measure volume flow of liquid or air, example air flow measuring, water flow test, diesel oil flow meter.

2. Glass rotameter-flow meter

Model	Range			Thread	Accuracy	Size(mm)
	GPM	LPM	Nm 3 /h			A	B	C	D	E	F	G	H
LZM-15	0.1-1	0.5-4	1-10 1.6-16 4-40	ZG1/2"	±4%	216	32	206	37	36	100	28	165
	0.2-2	0.8-8
	0.3-3	1-11
	0.5-5	2-18
	1-7	2-28
	1.5-9	5-35
LZM-20	2-10	8-40	2.5-25 6-60 16-80 16-160	ZG3/4"		233	39	220	44	42	100	37	165
	2-16	8-60
	2-20	8-80
LZM-25	1.5-15	6-60	20-200 25-250	ZG1"		253	44	240	50	31	100	37	175
	3-13	10-50
	4-24	10-100
	5-35	10-130
	5-45	10-170
LZM-40	10-45	40-170		ZG11/2"		265	62	250	62	33	100	52	170
	15-50	60-200
	10-60	60-240
	20-70	80-260
	20-80	80-300
