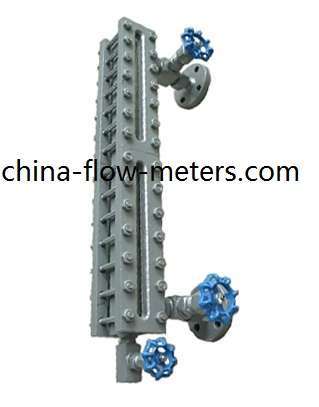

This is a kind of transparent level gague which flange Center to Center length=visible length, so called non-blind type sight glass level gauge.
Product Name: Glass Level Gauge
Exhibitors products: Level Meter / liquid level switch / liquid level transmitter / Non blind Transparent glass Level Gauge/stainless steel valves – Tianjin U-ideal Instrument Co., Ltd
One, Range of application
Serious Glass Sheet Level Gauge is a kind of sight glass level gauge which can show the liquid level directly. These type level gauges are widely used in chemical industries.
Two, TBS-A Transparent level gauge
1) Measure range ( flange center to center distance): 200~1700
2) Working temperature:≤250℃
3) Working pressure: ≤13MPa
4) Meter material: carbon steel, SS304 or SS316.
5) Transmit color: nature color
6) Ordinary globe valve or 1/4 opens or close valve.

Three. TBS-F Reflex level gauge
Working pressure: 2.5、4.0、6.3Mpa、10Mpa (temp.≤100℃)、0.6Mpa(suitable for R type).
Material: carbon steel, stainless steel
Working temperature: -160~+400℃
Pressure for steel ball shut off automatically: ≥0.2Mpa
Steam pressure: ≤0.6Mpa. Steam sheath joint: G1/2″male thread
Four. Features
Direct display, high accuracy in indication, is a reliable level gauge.
Simple structure and less maintains
Safe to use and can service for a very long time.
